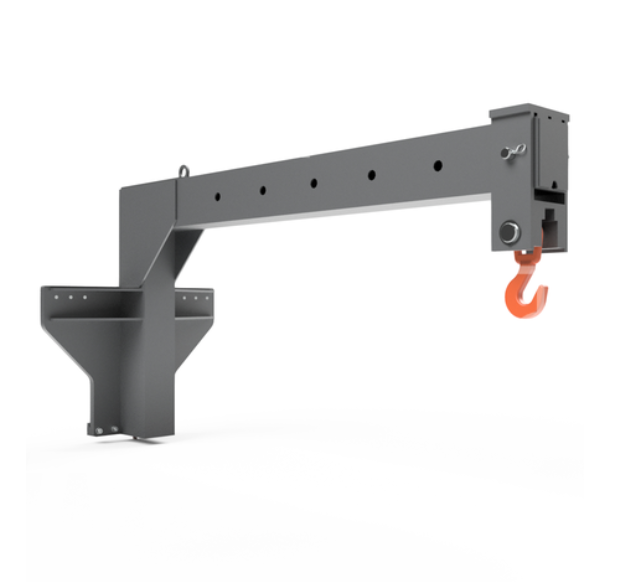

Brat macara pentru stivuitor

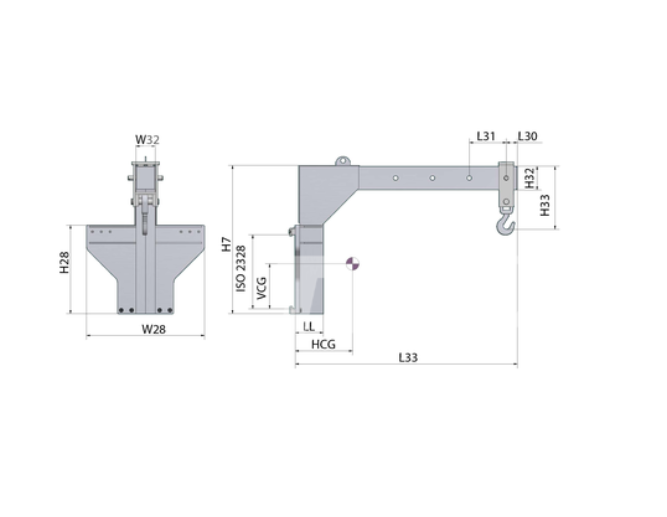

Clasa de montare (ISO 2328): FEM3
Type of mounting: hook-on mounted
Capacity Q (kg): 4000
Centru de greutate (LC) (mm): 500
Grosimea la capatul furcii (LL) (mm): 210
Inaltimea sasiului (H7) (mm): 1000
Total length (mm): 2000
Width of the carrying arm W32 (mm): 140
Height of the carrying arm H32 (mm): 180
Distance between end of the carrying arm and nearest load position hole L30 (mm): 70
Distance between two load position holes L31 (mm): 250
Lost height between hook and carrying arm H33 (mm): 450
Width of the base plate (W28) (mm): 800
Height of the base plate (H28) (mm): 600
Centrul de gravitate orizontal (HCG) (mm): 567
Centrul de gravitate vertical (VCG) (mm): 592
Greutatea atasamentului (G) (kg): 255
Model atasament: GAB4T
Height carriage (mm): 407
Different dimensions and capacities on request: yes
Crane with manual or hydraulic positioning system on request: yes
